JINGONG JGM791FT50M — Forklift
JGM791FT50M Forklift Overview
The JGM791FT50M is a high-performance forklift manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines s…
Description

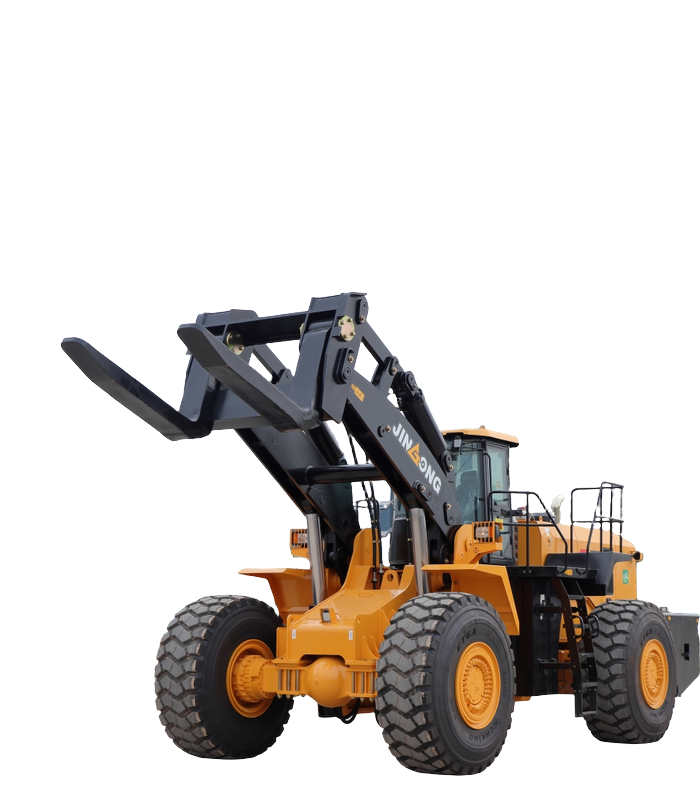

JGM791FT50M Forklift Overview
The JGM791FT50M is a high-performance forklift manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines strong power, reliable hydraulics and low operating costs. We supply the complete machine and full spare parts support for the JGM791FT50M forklift.
Key Advantages
- Operating Weight: 53000 kg
- Rated Load (at Max. Front Overhang): 50000 kg
- Max. Machine Length: 8530 mm
- Max. Gradeability (Full Load): 20 （ °）
- Max. Traction Force: 325 kN
Technical Specifications
| Machine Length (Forks Level) | 10790 mm |
| Machine Width | 3850 mm |
| Machine Height | 4070 mm |
| Load Center Distance | 900 mm |
| Operating Weight | 53000 kg |
| Max. Lift Load (Lift Height ≤300 mm) | 55000 kg |
| Rated Load (at Max. Front Overhang) | 50000 kg |
| Max. Fork Face Height | 3500 mm |
| Max. Fork Frame Height | 5145 mm |
| Max. Front Overhang | 2000 mm |
| Max. Fork Tilt Fwd/Rwd | 20/15 （ °） |
| Standard Forks (L×W×H) | 1800×280×155 mm |
| Steering Angle (L/R) | 32/32 （ °） |
| Turning Diameter | 19940 m |
| Min. Ground Clearance | 420 mm |
| Wheel Base | 4660 mm |
| Track Width (F/R) | 3070 mm |
| Front Overhang (Forks Level) | 1475 mm |
| Rear Overhang | 2730 mm |
| Max. Gradeability (Full Load) | 20 （ °） |
| Departure Angle | 20 （ °） |
| Max. Traction Force | 325 kN |
| Travel Speed | km/h 前进档Ⅰ/Ⅱ/III/ IV |
| III | 5.6/10/23 |
| Fork Tilt Angles at Max. Height | 20/22 ° |
| Crowd Angle at Ground Level | 15 ° |
| Left/Right Swing Angle | 10 ° |
| System Pressure | 23 MPa |
| Pivot Height at Max. Lift | 4178 mm |
| Articulation Pivot to Front Axle | 2105 mm |
| Max. Machine Length | 8530 mm |
| Max. Fork Frame Height (Crowded) | 5145 mm |
| Three-Sum Time (Lift/Dump/Lower) | s 举升/卸料/下降/三项和 |
Why Buy From CMPartsCN
As a long-term partner of JINGONG, CMPartsCN offers the JGM791FT50M forklift at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Need the right machine for your project? Contact us for a quotation.
