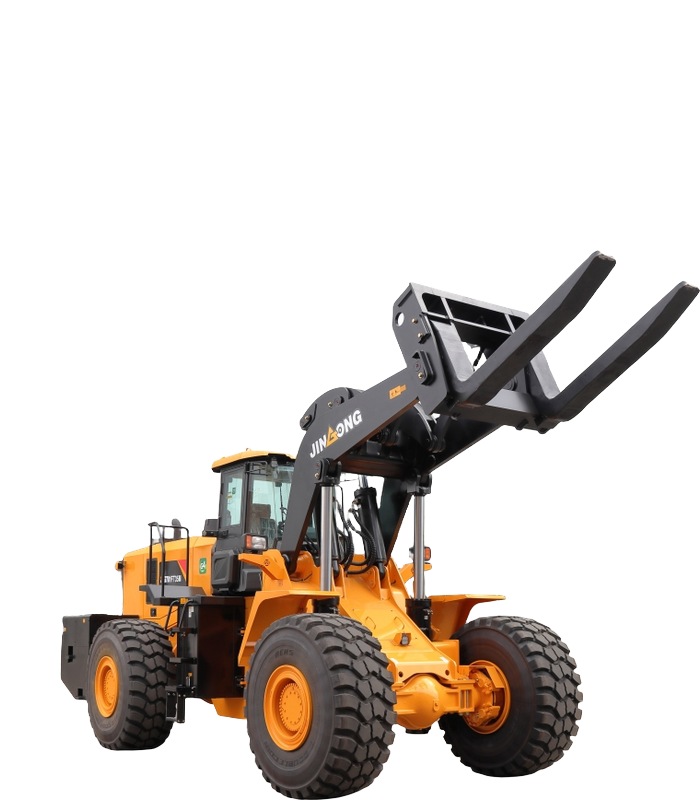

JGM781FT35M Forklift Overview
The JGM781FT35M is a high-performance forklift manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines s…
Description
JGM781FT35M Forklift Overview
The JGM781FT35M is a high-performance forklift manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines strong power, reliable hydraulics and low operating costs. We supply the complete machine and full spare parts support for the JGM781FT35M forklift.
Key Advantages
- Operating Weight: 38300 kg
- Rated Load (at Max. Front Overhang): 35000 kg
- Max. Machine Length: 7750 mm
- Max. Gradeability (Full Load): 20 （ °）
- Max. Traction Force: 270 kN
Technical Specifications
| Machine Length (Forks Level) | 9865 mm |
| Machine Width | 3185 mm |
| Machine Height | 3720 mm |
| Load Center Distance | 900 mm |
| Operating Weight | 38300 kg |
| Max. Lift Load (Lift Height ≤400 mm) | / kg |
| Rated Load (at Max. Front Overhang) | 35000 kg |
| Max. Fork Face Height | 3500 mm |
| Max. Fork Frame Height | 4480 mm |
| Max. Front Overhang | 3490 mm |
| Fork Tilt Fwd/Rwd (Boom Extended) | 45/23.5 （ °） |
| Standard Forks (L×W×H) | 1700×250×140 mm |
| Steering Angle (L/R) | 33/33 （ °） |
| Turning Diameter | 18410 mm |
| Min. Ground Clearance | 430 mm |
| Wheel Base | 4400 mm |
| Track Width (F/R) | 2510 mm |
| Front Overhang (Forks Level) | 3000 mm |
| Rear Overhang | 2400 mm |
| Max. Gradeability (Full Load) | 20 （ °） |
| Departure Angle | 21 （ °） |
| Max. Traction Force | 270 kN |
| Travel Speed | Km/h 前进档Ⅰ/ Ⅱ/Ⅲ/Ⅳ |
| Reverse Gears I-IV | 6.2/10.8/20/30 |
| Fork Tilt Angles at Max. Height | 24/28 ° |
| Crowd Angle at Ground Level | 20 ° |
| Left/Right Swing Angle | 10 ° |
| System Pressure | 21 MPa |
| Pivot Height at Max. Lift | 3980 mm |
| Articulation Pivot to Front Axle | 2360 mm |
| Max. Machine Length | 7750 mm |
| Max. Fork Frame Height (Crowded) | 4815 mm |
| Three-Sum Time (Lift/Dump/Lower) | s 举升/卸料/下降/三项和 |
Why Buy From CMPartsCN
As a long-term partner of JINGONG, CMPartsCN offers the JGM781FT35M forklift at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Need the right machine for your project? Contact us for a quotation.
