Huanan HNTC180-1200 — Telehandler

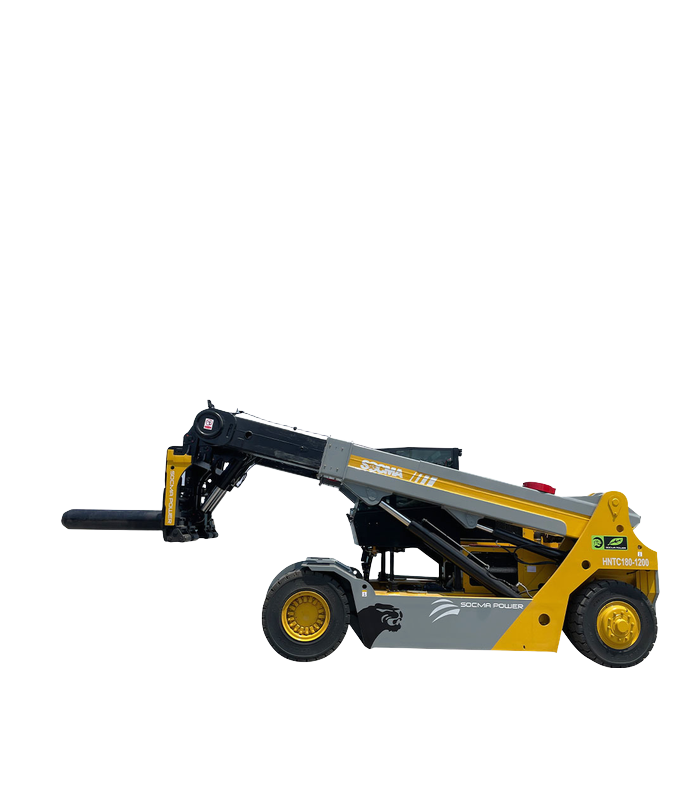

HNTC180-1200 Telehandler Overview
The HNTC180-1200 is a telehandler from Huanan Heavy Industry, a leading Chinese manufacturer of heavy industrial vehicles and port machinery. This telehandler is eng…
Description
HNTC180-1200 Telehandler Overview
The HNTC180-1200 is a telehandler from Huanan Heavy Industry, a leading Chinese manufacturer of heavy industrial vehicles and port machinery. This telehandler is engineered for high-load, high-duty applications with electric drivetrain options and low operating costs. We supply the machine with full spare parts support worldwide.
Key Advantages
- Rated Load: 16000/18000
- Operating Weight: 22000/23200
- Power Type: 柴油
- Rated Power: 142
- Operating weight: 22000/23200 kg
Technical Specifications
| Rated Load | 16000/18000 |
| Operating Weight | 22000/23200 |
| Rated Power | 142 |
| Power Type | 柴油 |
| Operating weight | 22000/23200 kg |
| Load centre | 1200 mm |
| Max load capacity | 16000/18000 kg |
| Max. lifting height | 6000 mm |
| Load Capacity at Max. Lift Height | 2500 kg |
| Max. forward reach | mm |
| Load capacity max. outreach | kg |
| Overall length (without fork) | 7150（带货叉） 5750（不带货叉） mm |
| Overall width | 2160 mm |
| Overall height | 2265 mm |
| Ground clearance | 150 mm |
| Turning radius(outside) | 5650 mm |
| Wheel base | mm |
| Luffing angle | ° |
| Forks dimension L /W / T | 2400x200x100 mm |
| Manufacturer | 东风康明斯 |
| Rated Power/speed | 142/2200 kW/rpm |
| Transmission type | 液力变矩器 |
| Shifting | 自动换档 |
| Number of gears (forward / reverse) | 3/3 |
| Max. Travelling speed | 28 km/h |
| Gradeability | % |
| Transmission | 液压泵类型 Hydraulic pump type |
| Pressure/Flow | MPa/gpm |
| Hydraulic Oil Tank Capacity | L |
Why Buy From CMPartsCN
As an export partner of Huanan Heavy Industry, CMPartsCN offers the HNTC180-1200 telehandler at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Contact us for a quotation.
