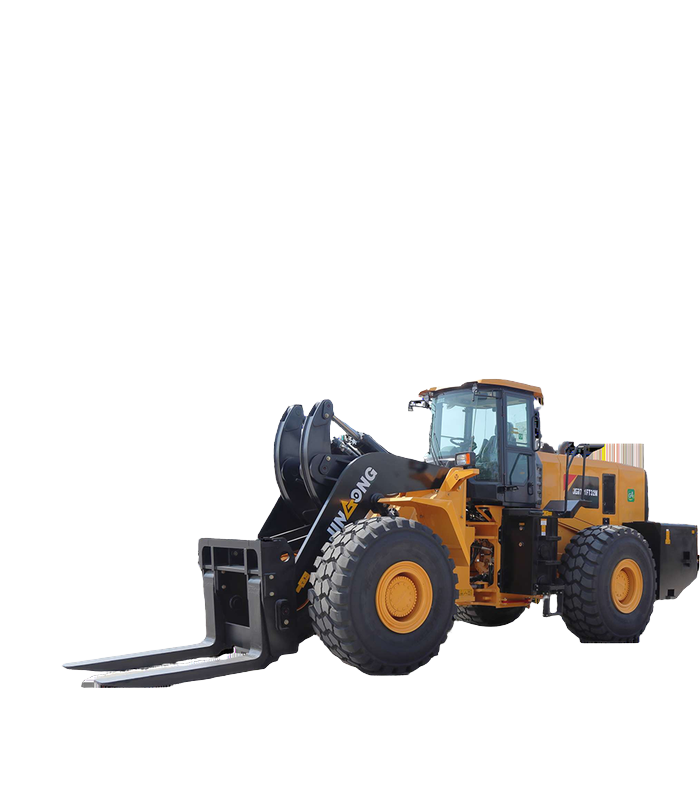

JINGONG JGM771FT32M — Forklift
JGM771FT32M Forklift Overview
The JGM771FT32M is a high-performance forklift manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines s…
Description
JGM771FT32M Forklift Overview
The JGM771FT32M is a high-performance forklift manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines strong power, reliable hydraulics and low operating costs. We supply the complete machine and full spare parts support for the JGM771FT32M forklift.
Key Advantages
- Operating Weight: 33500 kg
- Rated Load (at Max. Front Overhang): 32000 kg
- Max. Traction Force: 228 kN
- Machine Length (Forks Level): 9635 mm
- Machine Width: 3085 mm
Technical Specifications
| Machine Length (Forks Level) | 9635 mm |
| Machine Width | 3085 mm |
| Machine Height | 3730 mm |
| Load Center Distance | 900 mm |
| Operating Weight | 33500 kg |
| Rated Load (at Max. Front Overhang) | 32000 kg |
| Max. Fork Face Height | 3500 mm |
| Max. Fork Frame Height | 5170 mm |
| Standard Forks (L×W×T) | 1700×260×120 mm |
| Steering Angle (L/R) | 34/34 （ °） |
| Turning Diameter | 16980 mm |
| Min. Ground Clearance | 487 mm |
| Wheel Base | 4220 mm |
| Track Width (F/R) | 2380 mm |
| Front Overhang (Forks Level) | 2965 mm |
| Rear Overhang | 2400 mm |
| Departure Angle | 23 （ °） |
| Max. Traction Force | 228 kN |
| Forward: I-Low/I-High/II-Low/II-High | 6/11.5/23/32 Km/h |
| Fork Tilt Angles at Max. Height | 24/28 ° |
| Crowd Angle at Ground Level | 19 ° |
| Left/Right Swing Angle | 10/10 ° |
| System Pressure | 21 MPa |
| Pivot Height at Max. Lift | 4280 mm |
| Three-Sum Time (Lift/Dump/Lower) | 17.4 s |
Why Buy From CMPartsCN
As a long-term partner of JINGONG, CMPartsCN offers the JGM771FT32M forklift at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Need the right machine for your project? Contact us for a quotation.
