Huanan HNF400-1200EL-A — Heavy Forklift

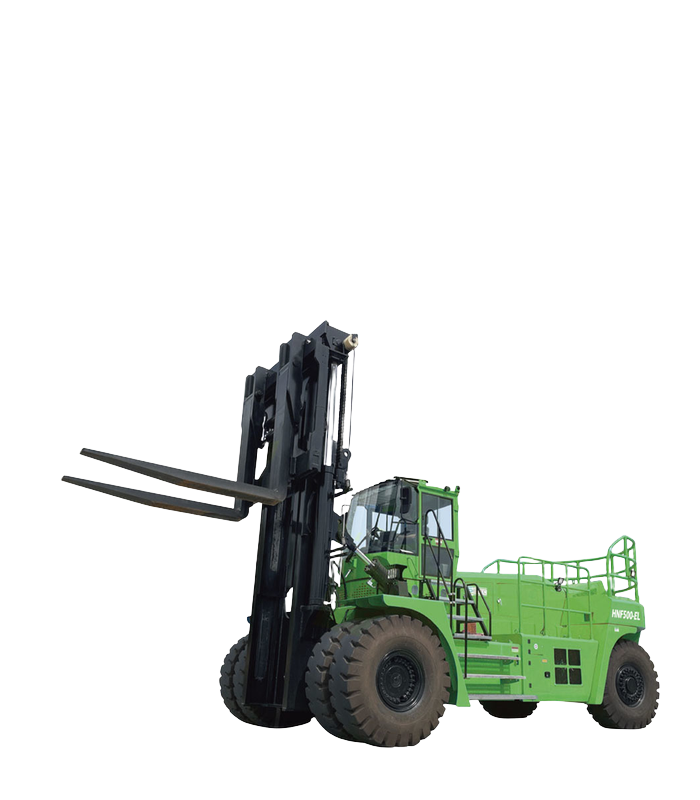

HNF400-1200EL-A Heavy Forklift Overview
The HNF400-1200EL-A is a heavy forklift from Huanan Heavy Industry, a leading Chinese manufacturer of heavy industrial vehicles and port machinery. This heavy …
Description
HNF400-1200EL-A Heavy Forklift Overview
The HNF400-1200EL-A is a heavy forklift from Huanan Heavy Industry, a leading Chinese manufacturer of heavy industrial vehicles and port machinery. This heavy forklift is engineered for high-load, high-duty applications with electric drivetrain options and low operating costs. We supply the machine with full spare parts support worldwide.
Key Advantages
- Rated Load: 40000
- Operating Weight: 56000
- Power Type: Electric
- Rated Power: 157
- Battery Rated Stored Energy: 422 kWh
Technical Specifications
| Rated Load | 40000 |
| Operating Weight | 56000 |
| Power Type | Electric |
| Rated Power | 157 |
| Power type | Pure Electric |
| Load center | 1200 mm |
| Wheelbase | 5500 mm |
| Weight | 56000 kg |
| Mast/carriage tilt angle(front/rear) | 5/10 |
| Height of mast lowered | 4750 mm |
| Lift height | 4000 mm |
| Height to head guard(height to cab) | 3900 mm |
| Overall length(without forks) | 7960 mm |
| Overall width | 4250 mm |
| Min.Turning radius | 7900 mm |
| Travel speed(loaded/unloaded) | 20/20 km/h |
| Max.lifting speed(loaded/unloaded) | 200/220 mm/s |
| Max. Lowering speed(loaded/unloaded) | 300/260 mm/s |
| Battery type | LFP (LiFePO4) |
| Battery Rated Stored Energy | 422 kWh |
| Battery voltage | 618 V |
| Motor type | PMSM |
| Motor rated power | 157 kW |
Why Buy From CMPartsCN
As an export partner of Huanan Heavy Industry, CMPartsCN offers the HNF400-1200EL-A heavy forklift at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Contact us for a quotation.
