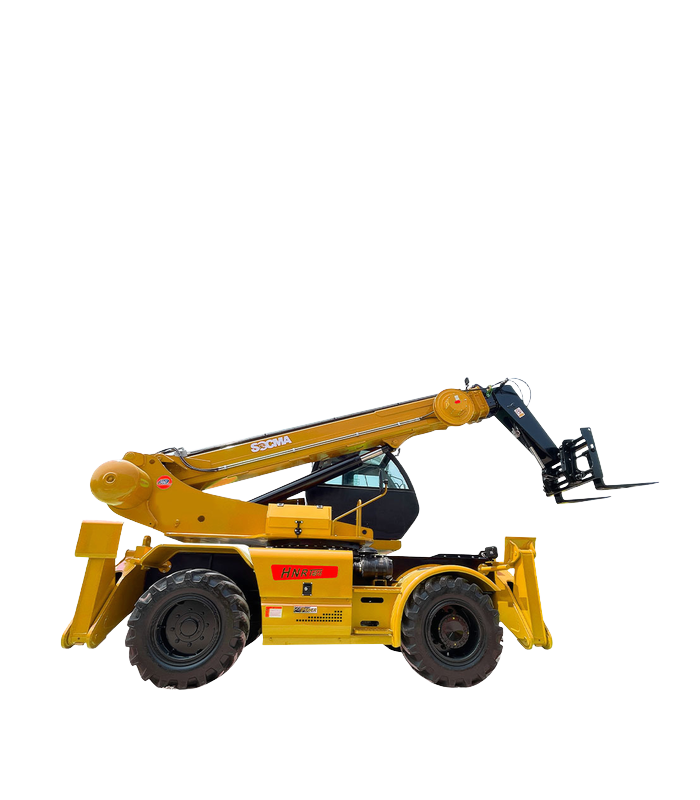

HNTR4015-4Z Telehandler Overview
The HNTR4015-4Z is a telehandler from Huanan Heavy Industry, a leading Chinese manufacturer of heavy industrial vehicles and port machinery. This telehandler is engin…
Description
HNTR4015-4Z Telehandler Overview
The HNTR4015-4Z is a telehandler from Huanan Heavy Industry, a leading Chinese manufacturer of heavy industrial vehicles and port machinery. This telehandler is engineered for high-load, high-duty applications with electric drivetrain options and low operating costs. We supply the machine with full spare parts support worldwide.
Key Advantages
- Rated Load: 4000
- Operating Weight: 16000
- Power Type: 柴油
- Rated Power: 125
- Operating weight: 16000 kg
Technical Specifications
| Rated Load | 4000 |
| Operating Weight | 16000 |
| Rated Power | 125 |
| Power Type | 柴油 |
| Operating weight | 16000 kg |
| Load centre | 500 mm |
| Max load capacity | 4000 kg |
| Max. lifting height | 15000 mm |
| Load Capacity at Max. Lift Height | 2500（支腿撑） 1500（支腿收） kg |
| Max. forward reach | 10500 mm |
| Load capacity max. outreach | 1000（Outriggersdown） 800（Outriggers up） kg |
| Overall length (without fork) | 7635 mm |
| Overall width | 2500 mm |
| Overall height | 3392 mm |
| Ground clearance | 365 mm |
| Turning radius(outside) | 5000 mm |
| Wheel base | 3000 mm |
| Luffing angle | -3~70 ° |
| Forks dimension L /W / T | 1000*150*50 mm |
| Manufacturer | 东风康明斯 |
| Rated Power/speed | 125/2200 kW/rpm |
| Transmission type | 静液压传动 |
| Shifting | 自动换档 |
| Number of gears (forward / reverse) | 2/2 |
| Max. Travelling speed | 25 km/h |
| Gradeability | 25 % |
| Transmission | 变量柱塞泵 液压泵类型 Hydraulic pump type |
| Pressure/Flow | 27/150 MPa/gpm |
| Hydraulic Oil Tank Capacity | 198 L |
| Standard tyres | 16/70-24-24PR |
| Steering mode | 两转；四轮；蟹行 |
| Safety cab homologation | ROPS – FOPS II |
| Air-conditioning system | 冷暖空调 Cooling/heating |
Why Buy From CMPartsCN
As an export partner of Huanan Heavy Industry, CMPartsCN offers the HNTR4015-4Z telehandler at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Contact us for a quotation.
