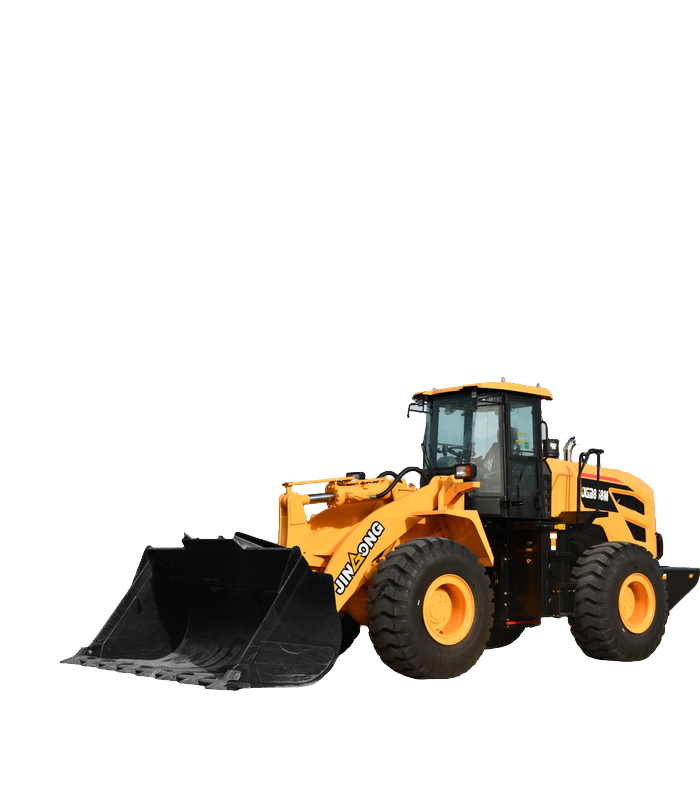

JINGONG JGM860M-17.8T — Wheel Loader
JGM860M-17.8T Wheel Loader Overview
The JGM860M-17.8T is a high-performance wheel loader manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, i…
Description
JGM860M-17.8T Wheel Loader Overview
The JGM860M-17.8T is a high-performance wheel loader manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines strong power, reliable hydraulics and low operating costs. We supply the complete machine and full spare parts support for the JGM860M-17.8T wheel loader.
Key Advantages
- Operating Weight: 17800 kg
- Rated Load: 5000 kg
- Bucket Capacity: 3 m³
- Rated Power: 162 kW
- Dumping Height: 3100 mm
Technical Specifications
| Operating Weight | 17800 kg |
| Rated Load | 5000 kg |
| Bucket Capacity | 3 m³ |
| Dumping Height | 3100 mm |
| Dumping Reach | 1220 mm |
| Min. Turning Radius (Outside Tire) | 6705 mm |
| Overall Dimensions (L×W×H) | 8250×2990×3540 mm |
| Wheel Base | 3300 mm |
| Max. Traction Force | ≥160 kN |
| Max. Breakout Force | ≥170 kN |
| Boom Raise Time | ≤5.3 s |
| Three-Sum Time (s) | ≤10 s |
| Rated Power | 162 kW |
| Forward Gear II | 0～36 km/h |
| Reverse Gear I | 0～16 km/h |
| Fuel Tank Capacity | 269 L |
| Hydraulic Oil Tank Capacity | 274 L |
Why Buy From CMPartsCN
As a long-term partner of JINGONG, CMPartsCN offers the JGM860M-17.8T wheel loader at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Need the right machine for your project? Contact us for a quotation.
