360° Rotating Bucket vs Tiltrotator: Complete Guide for Importers 2026
360° Rotating Bucket vs Tiltrotator: Complete Guide for Importers 2026
If you have been searching for a rotating excavator attachment, you have probably seen prices ranging from $1,800 to over $20,000 — and wondered why. The answer is simple: you are comparing two different products.
One is a 360° rotating bucket (a complete bucket with built-in rotation). The other is a tiltrotator (a universal quick coupler that gives rotation and tilt to any attachment). They look similar, they both rotate 360° and tilt ±40°, but they serve completely different purposes at very different prices.
This guide explains the difference clearly — so you never confuse them again, and you buy exactly what your job requires.
What Is a 360° Rotating Bucket?

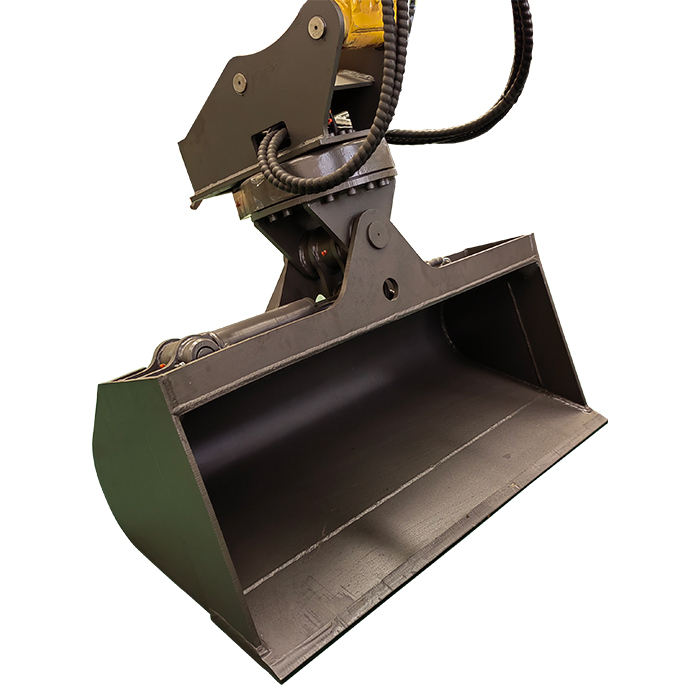

360° Rotating Bucket
A 360° rotating bucket (also called a hydraulic rotating bucket, rotary grading bucket, or 360° excavator bucket) is a single-purpose attachment where the rotation mechanism, tilt cylinders, and bucket are welded into one integrated unit. It connects directly to the excavator’s dipper arm via the standard bucket ear pins or quick coupler.
Key Features
- 360° continuous rotation — hydraulic motor drives the bucket body to rotate clockwise or counterclockwise without limit
- ±35° to ±45° hydraulic tilt — two independent hydraulic cylinders control left-right tilt
- Fixed bucket — the bucket is welded to the rotator, cannot be detached to use other tools like breakers or grapples
- Two hydraulic lines required for the basic rotation-only version; four lines for the full rotation + tilt version
How It Works
The excavator’s auxiliary hydraulic circuit supplies oil to a gerotor hydraulic motor inside the rotary assembly. The motor drives a planetary or worm-gear reduction unit to amplify torque, which rotates the bucket body. A central rotary union (swivel joint) keeps the hydraulic hoses from twisting during continuous rotation — this is the critical component that separates quality units from cheap ones. Tilt is controlled by two independent cylinders plumbed to a separate auxiliary circuit.
Pros & Cons
| ✅ Advantages | ❌ Limitations |
|---|---|
| Lower total cost — comes as a complete unit, ready to install | Cannot switch to other attachments — fixed to bucket use only |
| Shorter overall length — less digging force loss compared to tiltrotator | Less flexible for multi-tool jobs |
| Simpler structure — fewer moving parts, easier maintenance | If the bucket wears out, the entire unit needs replacement or repair |
| Lighter weight — less frontal load, better machine balance | — |
What Is a Tiltrotator?

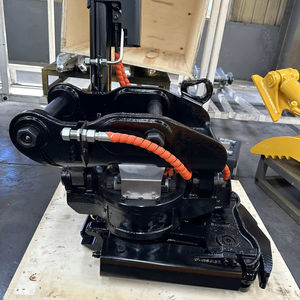

Tiltrotator
A tiltrotator (also called a hydraulic tilt rotator, tilt rotating quick coupler, or power tiltrotator — and colloquially known in Chinese as a “hydraulic wrist”) is a universal multi-function connector that sits between the excavator’s dipper arm and any attachment. It provides both 360° rotation and ±40° tilt to whatever tool is connected below it.
Key Features
- 360° continuous rotation + ±40° tilt — same rotation and tilt capability as a rotating bucket
- Built-in hydraulic quick coupler — the bottom has standard locking hooks that allow fast tool changes
- Multi-tool compatible — swap between buckets, breakers, grapples, compactors, augers, and more — all inheriting rotation and tilt
- Separate from the bucket — the tiltrotator body is purchased alone; buckets and other tools are ordered separately
How Tiltrotator Differs in Structure
Internally, a tiltrotator contains the same rotary drive and tilt cylinders as a rotating bucket. However, instead of being welded to a fixed bucket, the output end has a hydraulic quick coupler lock (usually S-type or wedge-style). This means:
- Every attachment you connect inherits 360° rotation and tilt capability
- You can switch from grading bucket to breaker to grapple in under a minute — without leaving the cab
- The excavator gains a “wrist” that positions any tool at any angle
Pros & Cons
| ✅ Advantages | ❌ Limitations |
|---|---|
| One unit serves all attachments — breaker, bucket, grapple all gain rotation + tilt | Higher total cost — tiltrotator body + separate bucket(s) + other tools |
| Fast tool changes — switch tools in under a minute from the cab | Longer frontal length — reduces digging depth and breakout force |
| Ideal for rental fleets and multi-trade contractors | More maintenance points — seals, coupler lock, extra hydraulic lines |
| Enables work that would otherwise require multiple machines | More prone to debris buildup in muddy or rocky conditions |
360° Rotating Bucket vs Tiltrotator: Side-by-Side Comparison
| Dimension | 360° Rotating Bucket | Tiltrotator |
|---|---|---|
| 360° rotation | ✅ Yes | ✅ Yes |
| ± tilt | ✅ Yes (±35–45°) | ✅ Yes (±40°) |
| Tool changeable | ❌ No — bucket is fixed | ✅ Yes — quick coupler base |
| Frontal length added | Short (~200–400mm) | Longer (~400–600mm) |
| Digging force loss | Minimal | Noticeable on heavy digging |
| Maintenance complexity | Low | Medium-High |
| Total cost (6-ton class) | $1,800 – $5,500 (complete with bucket) | $3,200 – $20,000+ (body only, no bucket) |
Price Comparison by Grade (2026 Market)
Prices are FOB China, in USD, for 6-ton and 12-ton excavator classes.
360° Rotating Bucket Prices (Complete Unit with Bucket)
| Grade | 6-Ton Class | 12-Ton Class | Features |
|---|---|---|---|
| Mid-Range (recommended) | $1,800 – $3,200 | $3,000 – $5,000 | Q355 steel body, NM400 wear plate, independent rotary union, NBR/FKM oil seals, 12-month warranty |
| Heavy-Duty Premium | $3,200 – $5,500 | $5,000 – $8,000 | Imported motor, NM450 steel, robotic full weld, overload relief valve, load-holding valve |
Note: Low-end workshop units exist below $1,800 but use Q235 steel, omit the central rotary union, and have no tilt function — not recommended for continuous use.
Tiltrotator Prices (Body Only — No Bucket Included)
| Grade | 6-Ton Class | 12-Ton Class | Features |
|---|---|---|---|
| Economy (worm-gear) | $3,200 – $4,500 | $5,000 – $6,500 | Basic seals, no load-holding valve, backlash-prone, limited to light use |
| Mid-Range (best-seller) | $4,500 – $6,000 | $6,500 – $9,000 | Planetary motor, central rotary union, load-holding valve, dual safety lock, 12-month warranty |
| Heavy-Duty Premium | $6,500 – $8,000 | $9,000 – $12,000 | Roller cam drive, forged housing, heavy-duty bearings, overload protection |
| Imported (Rototilt / Steelwrist) | $12,000+ | $18,000 – $25,000+ | Full CAN-bus control, proportional valve, premium seal kits, global dealer support |
⚠️ Important: Tiltrotator prices above are for the body only. You still need to buy at least one bucket separately — add $800 – $2,000 per bucket. A complete tiltrotator system (body + one bucket) costs roughly 2–3x a rotating bucket of the same size.
Installation Requirements (Both Products)
Hydraulic System
- Basic rotation-only: requires 1 auxiliary hydraulic circuit (2 hoses A/B)
- Full rotation + tilt: requires 2 independent auxiliary circuits (4 hoses)
- If your excavator has only 1 auxiliary circuit, you have two options:
a) Install an external multi-valve (adds cost)
b) Choose an electronic-switching single-circuit version (less reliable for heavy use) - Operating pressure: 16–21 MPa (recommended)
- Flow rate: 25–50 L/min depending on excavator class
Mounting
- Connection: Direct pin mounting to excavator ear brackets, or via quick coupler
- Controls: Foot pedal valve or electric joystick buttons — excavators with 3rd/4th auxiliary piping can use factory switches
- Weight balance warning: Small excavators (3–6 ton) should avoid oversized buckets — the added frontal weight can cause tipping
Which One Should You Choose?
| Your Situation | Recommendation |
|---|---|
| 90% of your work is trenching, grading, and slope trimming — you rarely use a breaker or grapple | ✅ 360° Rotating Bucket — best value, lower cost, less digging force loss |
| Your excavator is rented out — jobs vary daily: digging, breaking, grabbing, compacting | ✅ Tiltrotator — one unit makes every tool rotatable, maximizes fleet utilization |
| You need rotation but budget is tight | ✅ Rotating Bucket — complete package for $1,800–3,200, ready to work |
| You need rotation and frequently switch between 3+ tool types | ✅ Tiltrotator — higher upfront cost, but saves hours of tool change time daily |
| Heavy rock excavation and extreme digging | ✅ Neither ideal — consider a standard heavy-duty bucket. Both rotating options reduce digging force. Use a dedicated breaker for rock and a standard bucket for production digging |
6 Buying Tips to Avoid Costly Mistakes
- Confirm rotation only vs rotation + tilt — many budget “rotating buckets” have no tilt function. Without tilt, you lose the main advantage (slope trimming, ditch sidewall grading)
- Always verify the central rotary union — cheap units omit this critical component. Without it, hydraulic hoses will twist and burst after a few rotations
- Ask about motor brand and seal material — NBR and FKM (Viton) rubber seals are the minimum standard for reliable sealing
- Check for overload relief valve — without a buffer valve, sudden load shocks can crack the rotary housing and destroy the internal drive
- Confirm bucket steel grade — Q355 is minimum for continuous earth work; NM400 wear plate on cutting edge is recommended for gravel and rock
- When ordering, provide these 3 parameters:
a) Excavator model and tonnage
b) Ear bracket center distance and pin diameter
c) Whether your machine has 2nd and 3rd auxiliary hydraulic circuits
Maintenance Tips
- Grease rotary bearing every 100 operating hours — prevent sand and grit from wearing the seal
- Avoid using the rotation force to pry or tear heavy objects — this overloads the rotary drive
- Inspect hose fittings and swivel joint seals regularly — if oil seepage appears, replace seals immediately before contaminants enter the motor
- In cold climates, warm up the hydraulic system by idling rotation without load before heavy operation
Frequently Asked Questions
Q: What is the difference between a rotating bucket and a tiltrotator in simple terms?
A rotating bucket is one complete tool — rotation mechanism + bucket welded together. A tiltrotator is a connector that goes between your excavator and any attachment, making every attachment rotatable. The tiltrotator costs more because it serves multiple tools, not just a bucket.
Q: Which one should I buy for general earthmoving?
For dedicated trenching, grading, and slope work, a 360° rotating bucket is the better value. If your work requires switching between bucket, breaker, and grapple daily, invest in a tiltrotator — the time savings in tool changes will justify the cost.
Q: Will a rotating bucket fit my excavator?
Most Chinese manufacturers (including CMPartsCN) make rotating buckets to fit CAT, Komatsu, Hitachi, Kobelco, Volvo, Doosan, Hyundai, SANY, XCMG, LiuGong, and other common brands. Provide your machine model and year, and we will match the pin size and bracket interface.
Q: What if my excavator only has one auxiliary circuit?
You can either install an external multi-valve or choose a rotation-only bucket without tilt. For full rotation + tilt functionality, a second circuit is required. We can advise on the best solution for your machine.
Q: Why is the tiltrotator so much more expensive than a rotating bucket?
The tiltrotator body contains precision-machined internal components — rotary drive, quick coupler lock mechanism, load-holding valves — and must interface with multiple tool types reliably. It is a precision hydraulic component, not just a bucket with a motor. , the price above is for the body only — a complete system with bucket costs $2,000–4,000 more.
Q: What is the warranty on Chinese-made rotating attachments?
Mid-range rotating buckets typically carry 12 months warranty on materials and workmanship. Tiltrotators from reputable Chinese manufacturers also offer 12 months. Low-end workshop units may offer only 3–6 months or none.
Q: Can I use a tiltrotator with my existing buckets?
Yes — if your existing buckets have standard pin grabber or S-type quick coupler brackets. Most tiltrotators use the S-type wedge locking system (similar to Engcon and Steelwrist standards). If your buckets use a different system, adapter brackets are available.
