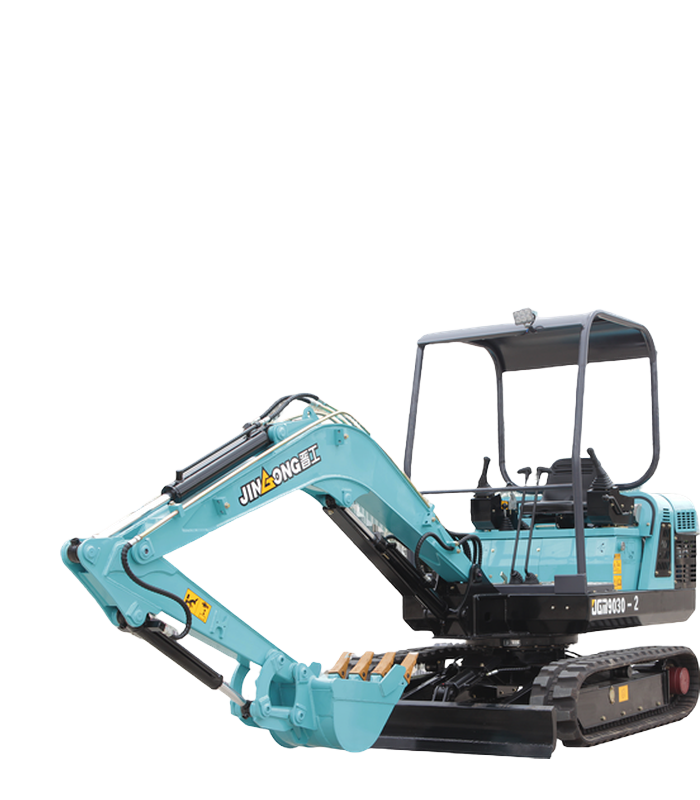

JGM9030-2 Excavator Overview
The JGM9030-2 is a high-performance excavator manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines str…
Description
JGM9030-2 Excavator Overview
The JGM9030-2 is a high-performance excavator manufactured by JINGONG, one of China’s leading construction machinery makers. Built for demanding jobsites, it combines strong power, reliable hydraulics and low operating costs. We supply the complete machine and full spare parts support for the JGM9030-2 excavator.
Key Advantages
- Operating Weight (kg): 2800
- Bucket Capacity (m³): 0.1（标准斗）
- Max. Digging Depth (mm): 2760
- Max. Dumping Height (mm): 3300
- Gradeability: 58%/30°
Technical Specifications
| Operating Weight (kg) | 2800 |
| Bucket Capacity (m³) | 0.1（标准斗） |
| kW/rpm | 20/2200 |
| Mpa | 18 |
| Machine Length (Transport, mm) | 4600 |
| Base Width (Rubber Track Std/Rev, mm) | 1420/1480 |
| Platform Width (mm) | 1160 |
| Machine Height (mm) | 2262 |
| Platform Ground Clearance (mm) | 510 |
| Engine Hood Height (mm) | 1280 |
| Min. Ground Clearance (mm) | 250 |
| Tail Swing Radius (mm) | 1252 |
| Track Width (mm) | 1400 |
| Track Length (mm) | 1800 |
| Standard Track Width (mm) | 280 |
| km/h | 2.7 |
| rpm | 12 |
| kPa | 32 |
| Max. Traction Force (kN) | 20 |
| Gradeability | 58%/30° |
| Bucket Digging Force (kN) | 16.2 |
| Arm Digging Force (kN) | 11 |
| Max. Digging Radius (mm) | 4880 |
| Max. Digging Depth (mm) | 2760 |
| Max. Digging Height (mm) | 4590 |
| Max. Dumping Height (mm) | 3300 |
| Max. Ground Digging Reach (mm) | 4800 |
| Max. Digging Radius at Max. Height (mm) | 2670 |
| Max. Blade Digging Depth (mm) | 370 |
| Max. Blade Height (mm) | 230 |
| Fuel Tank Capacity (L) | 23 |
| Hydraulic Oil Tank Capacity (L) | 58 |
| Coolant Capacity (L) | 3.4 |
| Engine Oil Capacity (L) | 5 |
Why Buy From CMPartsCN
As a long-term partner of JINGONG, CMPartsCN offers the JGM9030-2 excavator at factory-direct prices with complete documentation, flexible payment terms and worldwide delivery. Need the right machine for your project? Contact us for a quotation.
