Short Description:

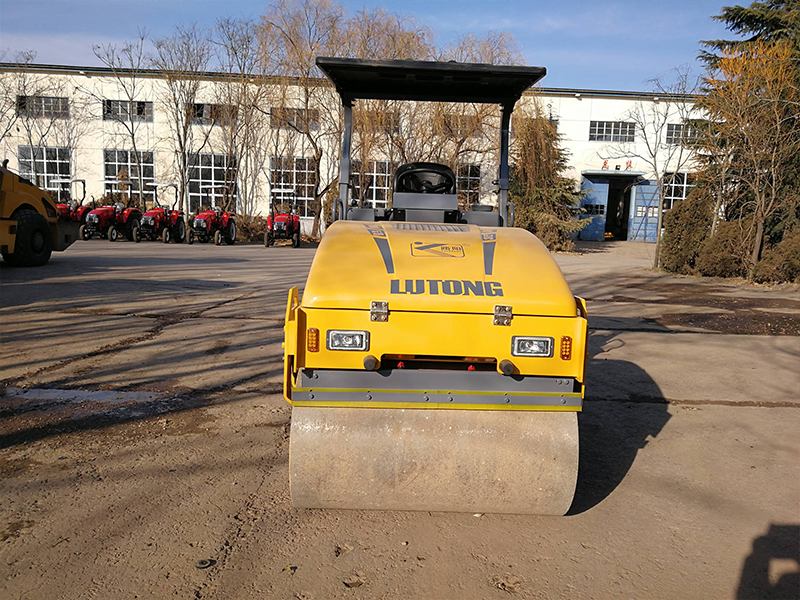

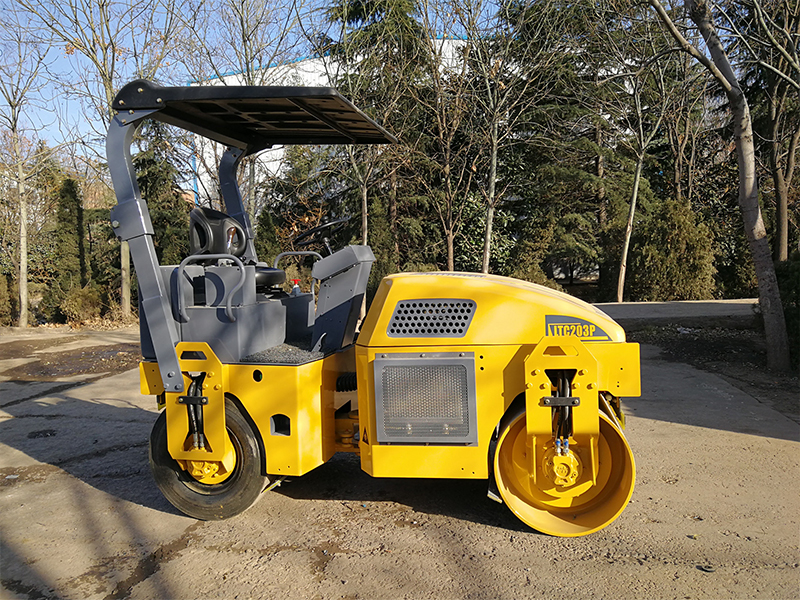

LTC203/LTC204 Hydraulic double drum vibratory roller. LTC203P Tire combined hydraulic vibratory roller. LTC203 series vibratory roller, applicable for the maintenance of the municipal road as well as suitable for the compaction of the narrow road surfaces such as groove foundation ,building construction ,pipeline backfill and stadium.
MAIN FEATURES
▲Hydraulic double wheels drive,hydraulic front drum vibration and steering ,with reliable performance and optimum function ratio；
▲LTC203P hydraulic front and rear wheels drive ,hydraulic front drum vibratory；
▲Both front and rear wheels have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent ,greatly expanded mechanical proper working condition；
▲Adopt ZN390B diesel engine,Energy conservation and environmental ,very convenient for use and maintenance；
▲Compact integral structure,small volume ,capable of used for compaction on narrow site ,with small investment ,quick return of good economic；

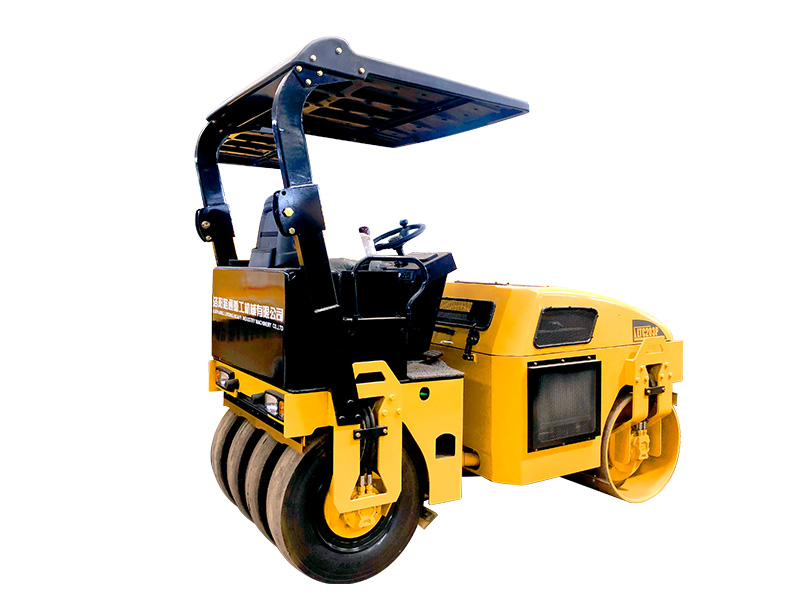

▲LTC203P rear wheel adopts combination of four slick tires,and has double function,of wheel roller and tire roller,which can effectively improve the rolling quality of asphalt pavement ,and improve the climbing ability；
▲LTC203P walking more stable ,damping effect；
▲LTC203P High-end seats,has greatly enhanced operator comfort ,reduce fatigue.
Main technical parameter
| MODEL | LTC203P | |
| Operating mass | kg | 3000 |
| Static linear load | N/cm | 120/103 |
| Vibration frequency | mm | 0.5 |
| Centrifugal force | KN | 30 |
| Vibration frequency | kz | 50 |
| Travel speed | Km/h | 0-12 |
| Grade ability | % | 32 |
| Steering angle | 。 | +26 |
| Overall dimension | mm | 2760*1400*2580 |
| Drum diameter | mm | 700 |
| Drum width | mm | 1250 |
| Quantity of rear tire | Pic | 4 |
| Specification of rear tire | 7.50-15 | |
| Wheelbase | mm | 2010 |
| Diesel power | Kw | 23 |
| Diesel model | ZN390Q | |
| Water tank capacity | L | 165 |
