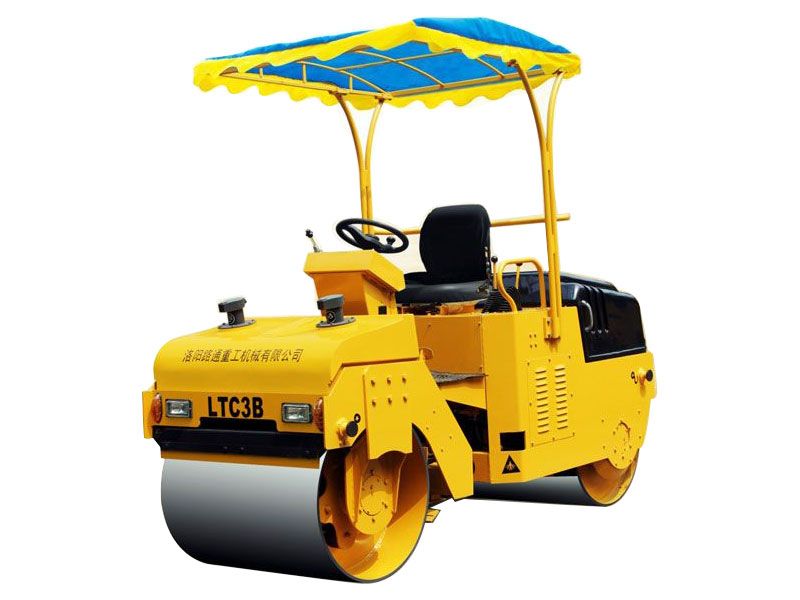

LTC4B LTC3B LTC2.5B Double drum vibratory roller
LTC3PB Tire combined vibratory roller
LTC series wheeled vibratory roller is applicable for maintenance of municipal roads and highway,as well as the compaction of the narrow road surfaces such as groove foundation with width above 1.1m,building construction ,pipeline backfull and stadium
Main Features
▲Mechanical movement ,hydraulic vibration ,hydraulic rotation ,with reliable performance and optimum function/price ratio ；
▲Both front and rear wheels have scraping and water spray unit；
▲Adopt ZN385Q series diesel engine ,very convenient for use and maintenance ；
▲Compact integral structure,small volume ,capable of used for compaction on narrow site ；
▲LTC3PB rear wheel can choose 3 smooth tires or pattern tyre combination ,not only has the above characteristics ,but also improves the adhesion of the drive ,thereby enhancing climbing performance,meanwhile ,is has double function of steel wheel roller and tire roller,and can be used for road maintenance to improve construction quality and efficiency ；
Main Technical Parameters
| MODEL | LTC3PB | LTC4B | LTC3B | LTC2.5B | |
| Operating mass | kg | 3000 | 4000 | 3000 | 2500 |
| Static linear load | N/cm | 128/174 | 140/180 | 128/172 | 115/163 |
| Vibration frequency | HZ | 50 | 50 | 50 | 50 |
| Centrifugal force | KN | 30 | 32 | 30 | 28 |
| Travel speed | Km/h | 5.6 | 5.6 | 5.6 | 5.6 |
| Grade ability | % | 30 | 20 | 20 | 25 |
| Turning speed | mm | 4600 | 4600 | 4600 | 4600 |
| Overall dimension | mm | 3020*1310*2600 | 3020*1310*2600 | 3020*1310*2600 | 3020*1310*2550 |
| Drum width | mm | 1000 | 1000 | 1000 | 900 |
| Quantity of rear tire | Pic | 3 | / | / | / |
| Specification of rear tire | 7.50-15 | / | / | / | |
| Wheelbase | mm | 2100 | 2100 | 2100 | 2100 |
| Diesel power | Kw | 21 | 21 | 21 | 21 |
| Diesel model | ZN385Q | ZN385Q | ZN385Q | ZN385Q | |
| Water tank capacity | L | 76 | 76 | 76 | 76 |
