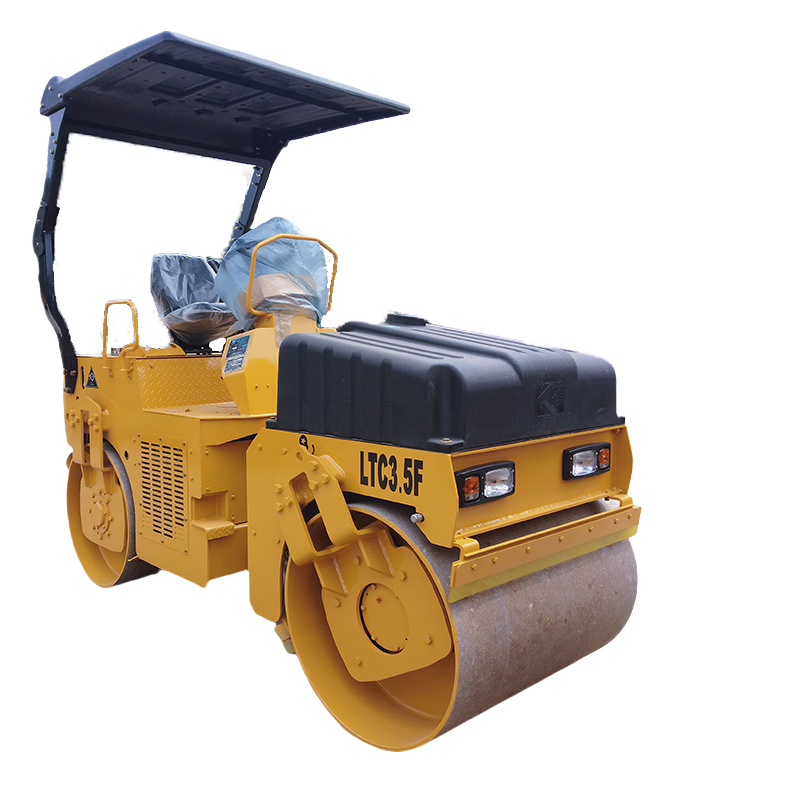

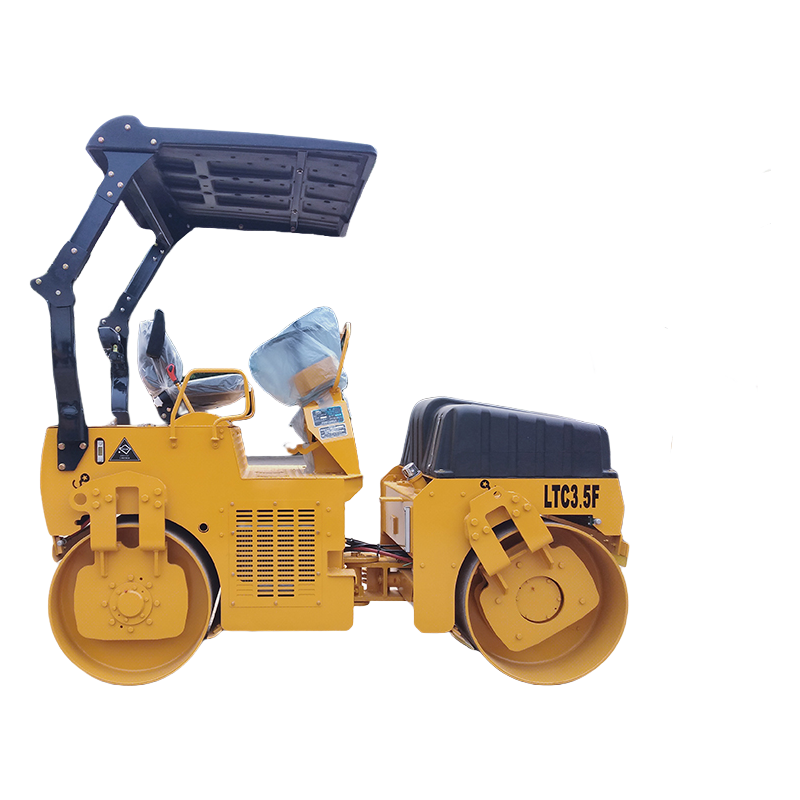

LTC3.5F-4 series wheeled vibratory roller is applicable formaintenance of municipal roads and highways, as well as thecompaction of the narrow road surfaces such as groovefoundation, building construction, pipeline backfill and stadium.
Main Features
▲The machine with fork-type structure, mechanical drive, Hydraulic articulated steering,flexible performance, safety and reliability.Available for compaction on narrow sites and side channel operation.
▲Adopt Domestic famous brand engine(National Stage-Ⅲ Emission Standard),convenient for use and maintenance, energy conservation and environmental protection.
▲Large capacity LLDPE water tank and canopy adopt advanced rolling molding process, high strength, strong corrosion resistance and beautiful appearance.
▲Both front and rear wheels with Adjustable qap mud scraper equipment.
▲Optimized gear transmission system with high strength and large modulus, High efficiency,long working life, stable and reliable.
▲Floating adjustable seat, make driving more comfortable , Large hood opening, Convenient for maintenance.
▲Equipped with self-sprinkling sprinkler system, dust elimination and environmental protection.
▲High pressure water pump sprinkler system as option,Intermittent or direct spraying, random switching, more wel-distributed spraying.
Main Technical Parameters
| MODEL | LTC3.5F-4 | |
| Operating mass | kg | 3500 |
| Static linear load | N/cm | 147/163 |
| Vibration frequency | Hz | 50 |
| Centrifugal force | KN | 35 |
| Travel speed | km/h | 2.4/5.0/7.8 |
| Grade ability | % | 20 |
| Turning speed | mm | 4500 |
| Overall dimension | mm | 2830×1420×2650 |
| Front drum width | mm | 1090 |
| Wheelbase | mm | 2000 |
| Diesel power | kw | 28 |
| Diesel model | V20-38C41 | |
| Water tank capacity | L | 200 |
| Steering Angle | 30 | |
| Minimum ground clearance | mm | 260 |
