LTC212 Hydraulic vibratory roller

+ Free Shipping

Chinese construction machinery and parts
Founded in 2001, we are a professional supplier specializing in the sales, maintenance, and spare parts supply for construction machinery. We have established extensive partnerships with leading Chinese manufacturers, including Jin Gong, Long Gong, Liu Gong , among others. Our deep industry knowledge allows us to not only understand the machines but also master the complete parts ecosystem. This expertise, built over two decades, enables us to provide precise, reliable, and cost-effective solutions for every customer.

LTC212 Hydraulic vibratory roller are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller, It is Primarily used for the compaction of road bituminous course,sand gravel mixtures and RCC material,Being a universal compaction equipment for highway,municipal road,park area and industry ground etc.

分类:
Guaranteed Safe Checkout

LTC212 Hydraulic vibratory roller are manufactured according to international advanced technology and by use of imported components from abroad. The machine is a double drum tandem vibratory roller, It is Primarily used for the compaction of road bituminous course,sand gravel mixtures and RCC material,Being a universal compaction equipment for highway,municipal road,park area and industry ground etc.

Main Features
▲Full hydraulic two wheel drive and vibration.
▲Double frequency double vibration system.
▲Hydrostatic center articulated steering,Optional unique crab agency.
▲Cabin with air conditioner,comfortable and spacious,the flexible steering seat facilicates the operation.
▲The driver’s cabin can be turned on one side as a whole,to facilitate maintenance.
Fork-type frame,good hold-down property.
▲Hydraulic pump and vibrating motors are of the products made by American manufacturer SAUER or German manufacturer REXROTH.
Main Technical Parameters

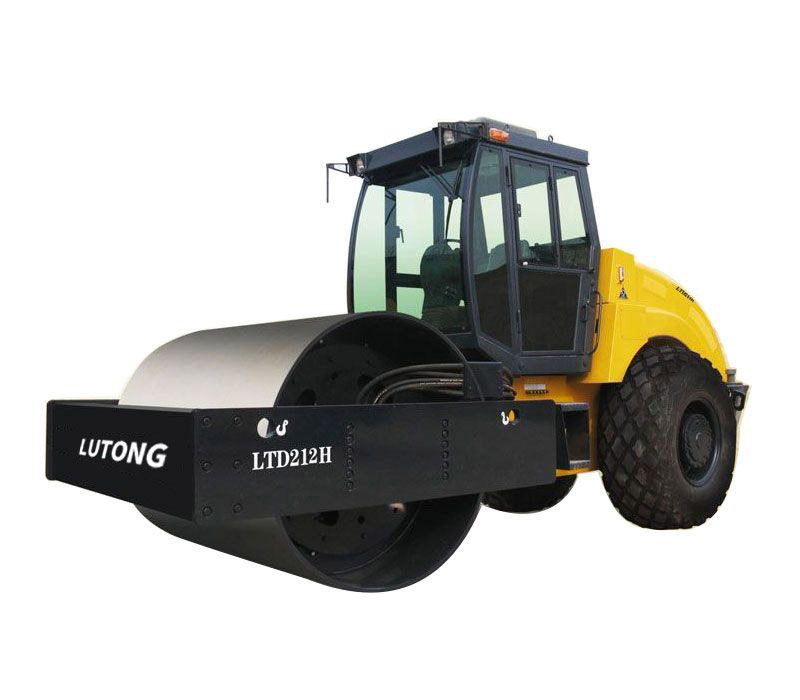

MODEL   LTD216H LTD214H LTD212H LTD210H
Operating mass Kg 16000 14000 12000 10000
Static linear load N/cm 428 373 326 326
Vibrating amplitude Mm 2.0/1.0 1.7/0.8 1.7/0.8 1.7/0.8
Vibrating frequency Hz 28/35 28/35 28/35 28/35
Centrifugal force KN 320/260 290/180 260/160 260/160
Travel speed Km/h 12 12 12 12
Grade ability % 35 35 35 35
Turning radius mm 7000 7000 7000 7000
Overall dimension mm 6025×2280×3050 5900×2280×3050 5650×2280×3000 5650×2280×3000
Vibration round width mm 2100 2100 2100 2100
Wheelbase mm 3265 3185 3060 3060
Ground clearance mm 432 432 360 360
Diesel power kW 110 110 110 110
Diesel model   CUMMINS 6BT5.9 CUMMINS 6BT5.9 CUMMINS 6BT5.9 CUMMINS 6BT5.9
